RemoteControl - GPIB Instrument Scripting and Configuration Software

RemoteControl V3.0 allows you to easily program RF test equipment using GPIB instructions, without the usual overhead of having to write a suitable computer program first. RemoteControl can store and play back a GPIB instruction sequence (or "macro" or "script") to configure an instrument for a particular measurement. You can use a GPIB script like an internal instrument state store, but it has a number of significant advantages. Its flexibility and power is greater than recalling an instrument state although it is best suited to smaller automation tasks than test software such as Agilent's VEE or National Instruments' LabView.

The advantage of a GPIB script file is that it is very powerful without being too complicated to use; it can be easily modified to run on other instruments, even e-mailed to others (some internal instrument states aren't portable or can't be extracted from the instrument); scripts can be archived with other project data; they can be edited / copied / enhanced / commented with a text editor. Re-creating a test bench to repeat an experiment can normally involve a lot of setup time, but downloading a GPIB script takes just a few seconds.

RemoteControl was written initially to help with automating test setups for an RF project we were involved in. Each test required a different setup of spectrum analyzer, signal generator, BER tester and receiver being tested. This particular project ended up with around 20 different GPIB script files, saving an enormous amount of button pressing each time a test was repeated.

RemoteControl versions available: Freeware and Full

There are two versions of RemoteControl. One is freely distributed as freeware, and although it has a limited feature set, it has enough functionality to be useful to its users. It also serves as an advertisement of capability of Aphena Ltd. Get your copy now from our download area! The full version of the software has many enhancements including:

1. Additional support for Agilent, Ines and ComputerBoards GPIB cards
2. Downloading via RS-232 is available as well as GPIB
3. Support for command line parameters to run a script. (Used to execute GPIB scripts from other software, or to double-click them in Windows Explorer)
4. Script Variables, which can be used to modify the behaviour of a generic script
5. Insert prompt messages for the user, which pause or skip parts of the script.
6. DDE commands can be sequenced in the same way as GPIB commands, and this can be used to automate our SoftPlot Measurement Presentation software.

Playing a GPIB Script

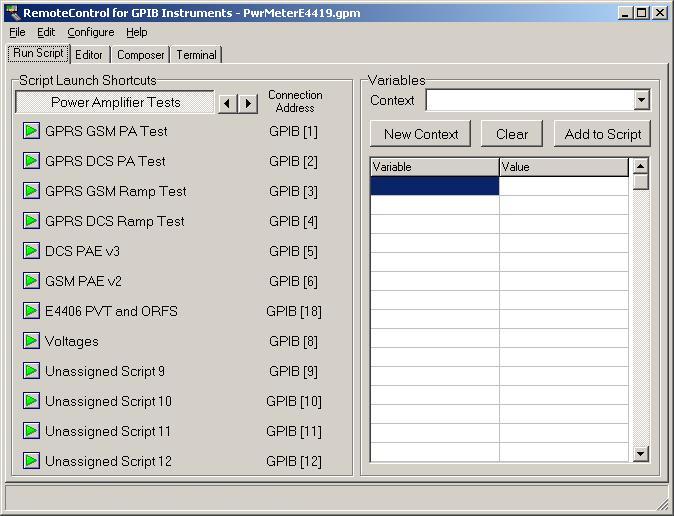

Each script is assigned to a button on the "Download" page of the software. The software looks like the example below. Set the GPIB address next to the button to match the address of the intended instrument, or choose to use RS-232, and click on the button to make the download happen.

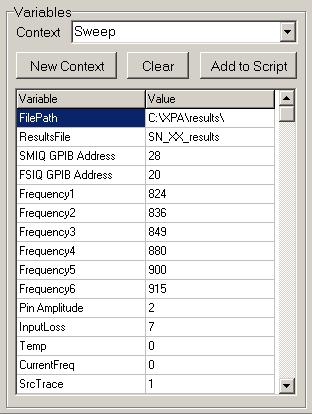

Variables and Contexts

The values that are sent as parameters in your GPIB scripts can be directly entered as numerical values, but there are occasions where a more generic script is useful. For example, the centre frequency for a particular test setup can be referred to in the script by a variable name, and the desired value can be entered into the variable list on this page.

When a script is first run, any variables contained in it are automatically added to the list. Default values are also read from the script file. Subsequently if the script is run again, it will use the modified values from the list.

If several scripts are used together, it could be useful to keep their variables apart from each other. So variables can be grouped together according to the context in which they are used. For example, all the signal generator variables could be in one context, and all the spectrum analyzer variables in another. You can choose to show the variables from a particular context by selecting the context name from the drop-down list. In a script file that declares variables, it can also define a context for them.

Creating GPIB Scripts

IEEE 488.2 Format for Command and Query

IEEE 488.2 introduced a degree of consistency to instrument GPIB command sets. Now for example, there is a resemblance between the instruction sets of network analyzers from different manufacturers where previously the commands had been completely unique. A particularly helpful concept is that instructions have a related form for reading and for setting up the instrument. For example, an oscilloscope timebase can be set and queried using the following commands:

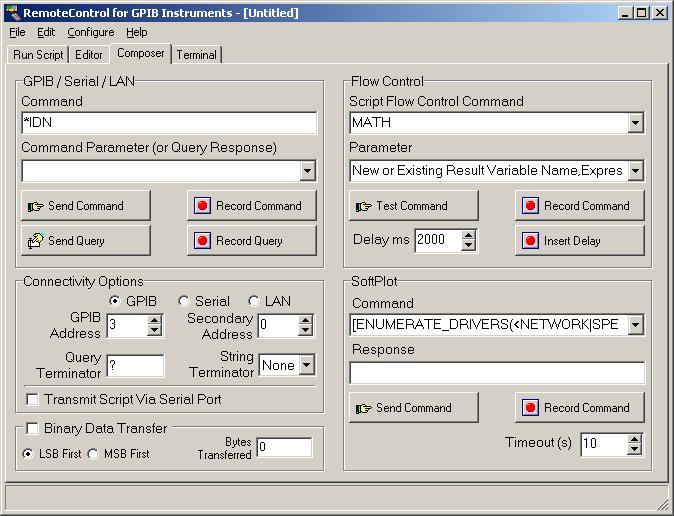

So it is a simple matter to construct a command to program the instrument with the current setting by combining the query instruction (without the "?") with the query response obtained from the instrument. It is this concept which has determined the design of the Composer page of the RemoteControl software.

1. The first step in creating a GPIB script file is to specify the file. From the File menu, choose New... and type in the filename to be created. GPIB Script files have the file extension "GPM", to distinguish them from other types of file, although they are actually plain text files with one script statement per line and commas "," separating each part of the statement.
2. Next, find the relevant GPIB instruction from the programming manual for the instrument, and enter it in the GPIB Command box (without a query "?" or command value).
3. Then click on Send Query, and the software combines the GPIB Command string with the Query Terminator, sends it to the instrument, and reads back the response. The response string is displayed in the Command Parameter box.
4. Now it is possible to experiment by sending the GPIB instruction as a command by clicking on Send Command. This assembles the GPIB Command with the Command Parameter, and writes it to the instrument.
5. When the user is satisfied with the operation of the command, it can be added to the current script file by clicking on Record Command, creating a GPIB script statement
6. Close the file

The advantage of this technique is that each command can be tested individually before committing it to the script file. The query response from the instrument is often exactly the command parameter required for the script being created, or can be used as the basis for it. This helps to reduce syntax errors and speed up script creation. A typical instrument configuration can be defined in 15 to 20 commands. After that, the script file can be copied and modified with the built-in editor to create related instrument settings very quickly.

SoftPlot

SoftPlot Measurement Presentation Software is another product available from Aphena Ltd. It is used to extract trace data from RF test equipment such as Network Analyzers, Spectrum Analyzers, Modulation Analyzers and Oscilloscopes. The data can be displayed in a variety of graph styles, and then inserted into documents and presentations. The RemoteControl program can be used together with SoftPlot, where RemoteControl can control SoftPlot operations through DDE as well as configuring the test equipment. Find out more about SoftPlot

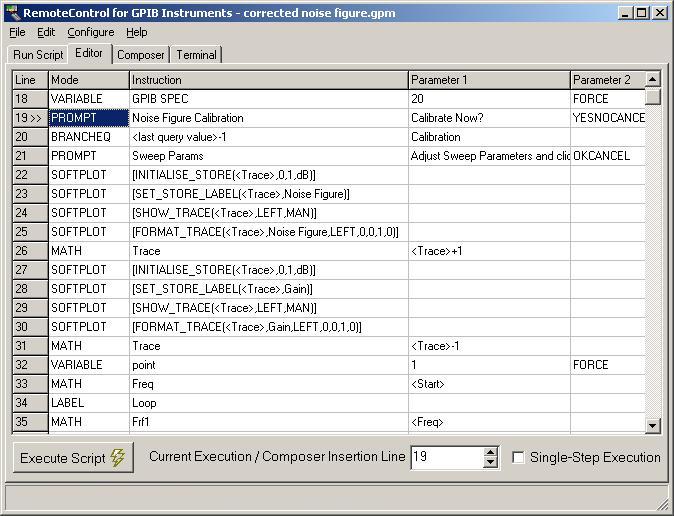

Script Editor

The Editor allows the currently-loaded script to be fine-tuned and debugged. New lines can be inserted from the Composer page, and the existing lines can be re-ordered or modified. Additionally, the script can be executed in single-step mode so that each line can be tested individually. When the script is running normally, the execution point is interactively shown by the >> symbol in the left-hand column.

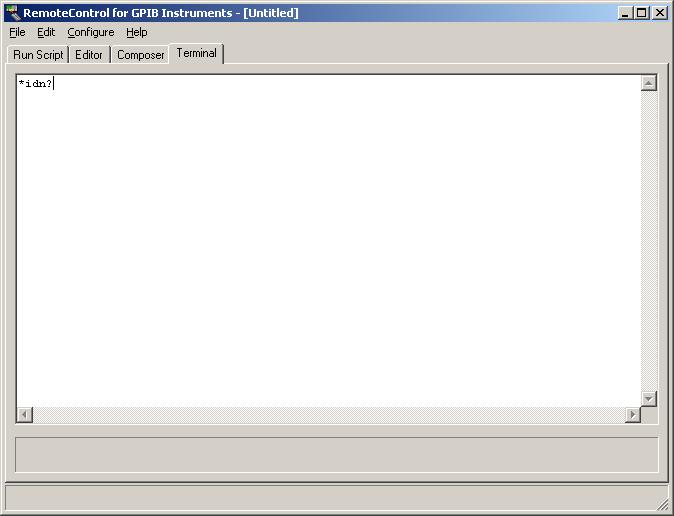

Serial Port Terminal

It is possible to type into the terminal window to transmit characters over the serial port, and to view incoming responses. This is intended for setting up the link with a remote copy of RemoteControl running on another PC, for the purposes of sending script files to it.

Program Installation

RemoteControl requires a National Instruments GPIB card (or compatible) in order to connect to GPIB instruments.

Hardware Requirements

The minimum system requirements in order to run the software are :

Microsoft Windows XP / 2000 / 98 / NT4

If GPIB instrument transfers are required:

a National Instruments GPIB card, type PC-IIA, PC-AT, or PC-PCMCIA;

or a ComputerBoards Inc GPIB card, type ISA-GPIB, ISA-GPIB/LC,

ISA-GPIB-PC2A, PCI-GPIB, PCM-GPIB;

IC Select inc. (www.icselect.com) 488-USB, 488-USB2

or an Agilent/Hewlett-Packard 82335, 82340 / 82341, 82350 or 82357A HP-IB card.
